Industrial

Explore GS FAN’s high-performance fans for a wide range of industrial environments.

Industrial

GUMSUNG POONGRYUCK designs, manufactures and sells industrial, HVAC and construction fans using its own technical data. A wide range of products and models gives customers more choice. We focus on performance through AMCA, high-efficiency and KARSE certifications. Precise performance and quality testing using AMCA test facilities and KSA standards supports customized products that meet evolving needs.

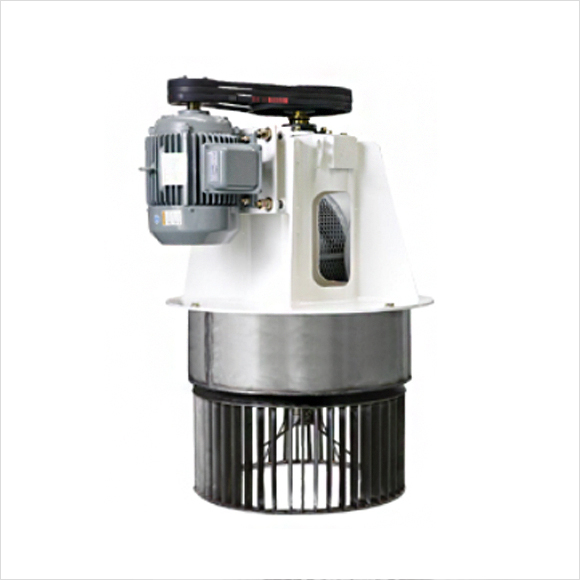

GRC Series

- 1. Is mainly used in a high-temperature industrial drying furnace or heat-reating furnace.
- 2. The main use temperature is 150℃ ~ 950℃, occasionally and is sometimes used for more than 1000℃.
- 3. The hot air and the contact area is mainly used for heat resistant steel. Depending on the air temperature STS304, STS316L, STS310S, INCOLEL or Cast SHC13, SCH21, SCH15 and the like are used. Used in INCONEL or casting products are mainly over 800℃.
- 4. Mainly form a fan shape of the plug type is installed vertically and horizontally.
- 5. it si used at high temperatures, and this Insulating tubes for blocking heat transmission to the outside temperature, a heat insulating material is filled inside Insulating tubes.
- 6. Used as insulation material in accordance with the air temperature at glass wool, rock wool, use mineral wool, ceramic wool, ceramic boards.
- 7. Air-cooled system and water-cooled system are there, depending on the air and bearing temperature. The air-cooled below 650℃, 650℃ more is appliced to the water-cooled.
- 8. SIROCCO, TURBO, AXIAL, PLATE is the impeller type.
